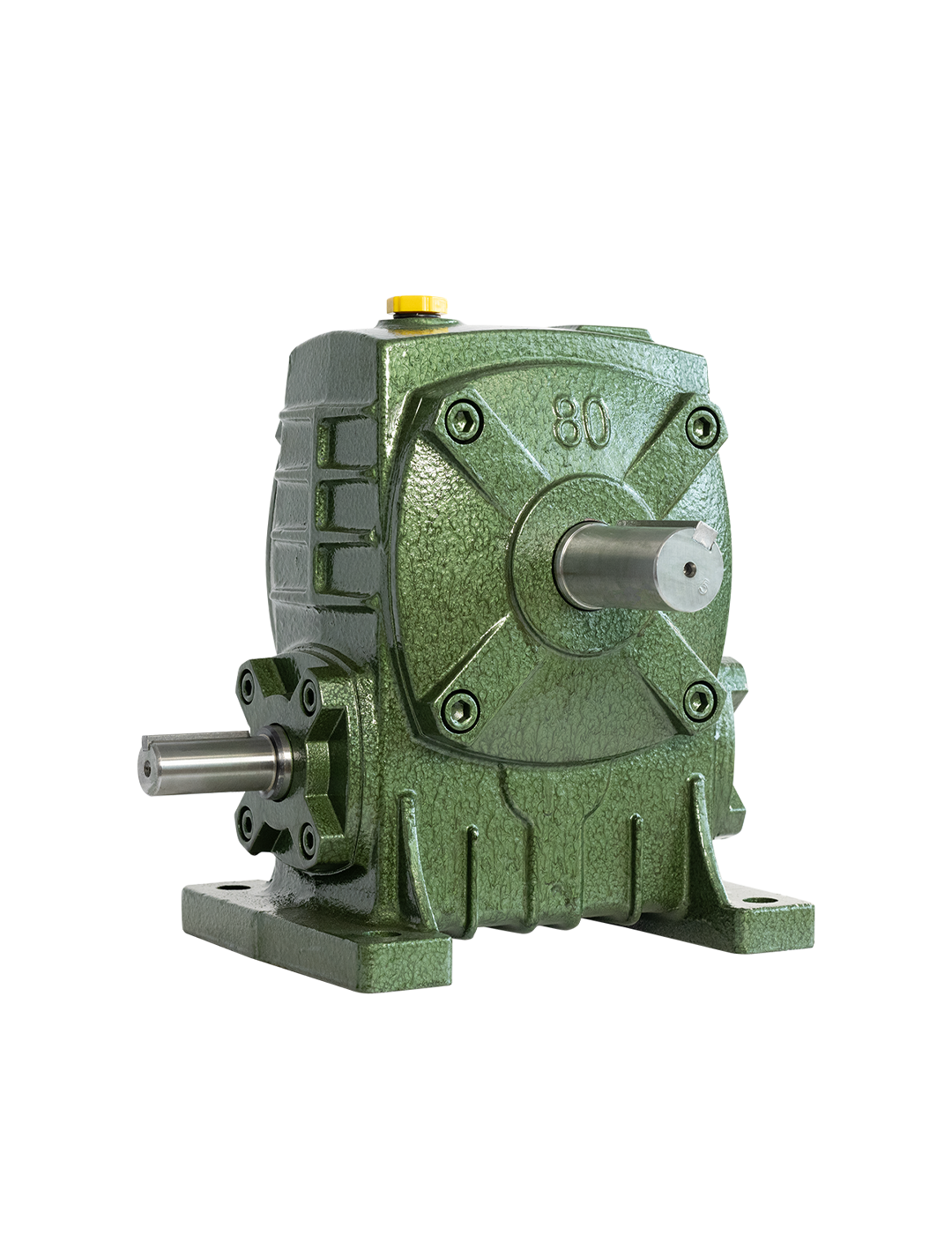

WPA Foot-Mounted Worm Gearbox

Need product advice? Ask an expert

WPA Model Technical Information

Foot-Mounted Smooth Transmission High Versatility

The WPA model is the basic model in the WP series, featuring a foot-mounted design for robust structure and high versatility. It is suitable for various industrial applications requiring smooth speed reduction, providing reliable power transmission and precise speed control.

Dimension Parameter List (Motor Flange)

Mobile: tap cards to expand. Desktop: scroll the full table.

Size Input
Power (kW)
Ratio A AB BB CC H LL M N E F G Z Flange Input hole Output shaft Weight (kg)
LA LB LC LE LZ Q U T×V LS S W×Y
40 0.12 1/10–1/60 135 75 74 40 141 60 90 100 70 80 13 10 115 95 140 4 M8 31 11 4×12.8 28 14 5×3 5
50 0.18 1/60 151 83 97 50 180 80 120 140 95 110 15 12 115 95 140 4 M8 31 11 4×12.8 40 17 5×3 8
60 0.37 167 91 112 60 207 90 130 150 105 120 20 12 130 110 160 4 M8 33 14 5×16.3 50 22 6×3.5 11
70 0.37 200 109 131 70 238 105 150 190 115 150 20 15 130 110 160 4 M8 40 14 5×16.3 60 28 8×4 17
0.75 202 111 165 130 200 M10 42 19 6×21.8
80 0.75 225 125 142 80 273 120 170 220 135 180 20 15 165 130 200 4.5 M10 48 19 6×21.8 65 32 10×5 22
1.5 52 24 8×27.3
100 1.5 280 148 169 100 334 150 190 270 155 220 25 15 165 130 200 4.5 M10 52 24 8×27.3 75 38 10×5 38
120 2.2 / 3.0 333 181 190 120 423 180 230 320 180 280 30 18 215 180 250 5 M12 63 28 8×31.3 85 45 14×5.5 64
135 3.0 / 4.0 375 202 210 135 482 215 250 350 200 290 30 18 215 180 250 5 M12 63 28 8×31.3 95 55 16×6 85
147 3.0 / 4.0 380 204 212 147 495 203 250 350 200 280 32 18 215 180 250 5 M12 63 28 8×31.3 95 55 16×6 96
155 4.0 425 224 252 155 541 235 275 390 220 320 35 21 215 180 250 5 M12 63 28 8×31.3 110 60 18×7 118
5.5 448 247 265 230 300 M12 83 38 10×41.3
175 5.5 / 7.5 481 262 262 175 600 260 310 430 250 350 40 21 265 230 300 5 M12 83 38 10×41.3 110 65 18×7 165
200 7.5 516 258 305 200 677 290 360 480 290 390 40 24 265 230 300 5 M12 83 38 10×41.3 125 70 20×7.5 236
11.0 543 285 300 250 350 6 M16 114 42 12×45.3
250 11.0 / 15.0 615 330 360 250 824 350 460 560 380 480 45 28 300 250 350 6 M16 114 42 12×45.3 155 90 25×9 396

WPA Configuration and Selection

WPA is the basic foot-mounted model in the WP worm gearbox family. Its robust base mounting and motor-flange dimensional options make it suitable for industrial machinery that needs stable right-angle speed reduction.

When is WPA the appropriate configuration?

Use WPA when the machine layout requires a foot-mounted reducer and the listed motor-flange and output-shaft dimensions match the drive system.

How should the correct size be confirmed?

Compare motor power, reduction ratio, output shaft, mounting-hole dimensions, weight, and available installation space with the table. Load conditions and operating hours should also be provided.

Can ZPGear confirm a replacement model?

Yes. Send the existing nameplate, dimensional drawing or measured interfaces, motor data, mounting position, and application details for comparison.

Explore related worm gearboxes or contact ZPGear with the required ratio, motor power, mounting position, and output-shaft dimensions for model confirmation.

Engineering Data and Selection Verification

Use the information on this WPA Foot-Mounted Worm Gearbox page for preliminary comparison. Final dimensions, materials, interfaces and operating limits must be confirmed against the current manufacturer catalog or an approved project drawing before purchase, fabrication or installation.

Table scope: each parameter row applies only to the model or size identified in that row. Do not interpolate, combine or transfer values between sizes without manufacturer confirmation.

Required Project Inputs

  • Input speed and motor information
  • Required output speed or target ratio
  • Driven load type, start-stop pattern and operating schedule
  • Mounting position, shaft direction and available installation space
  • Site environment and maintenance-access requirements

Interfaces to Confirm

  • Model size and mounting-hole pattern
  • Input and output shaft or bore dimensions
  • Flange, keyway, coupling and guarding arrangement
  • Shaft center position and surrounding clearance
  • Lubrication and inspection access

Reproducible Speed and Ratio Check

Required ratio: input speed ÷ target output speed. Expected output speed: input speed ÷ selected ratio. Record the source of each input value and use consistent units.

This arithmetic check does not confirm torque, power, service factor, temperature, efficiency or life. Ask ZPGear to verify those items from the current manufacturer data for the selected model and operating condition.

Source record: keep the manufacturer name, catalog or drawing number, revision date, selected model size, project inputs and final approval sheet with the order documentation. Send the project information to ZPGear for confirmation.
