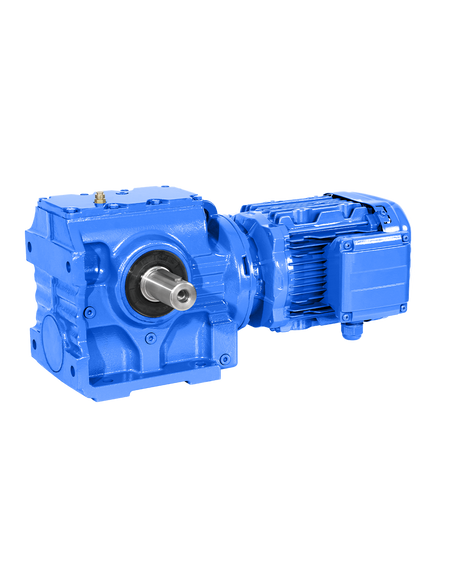

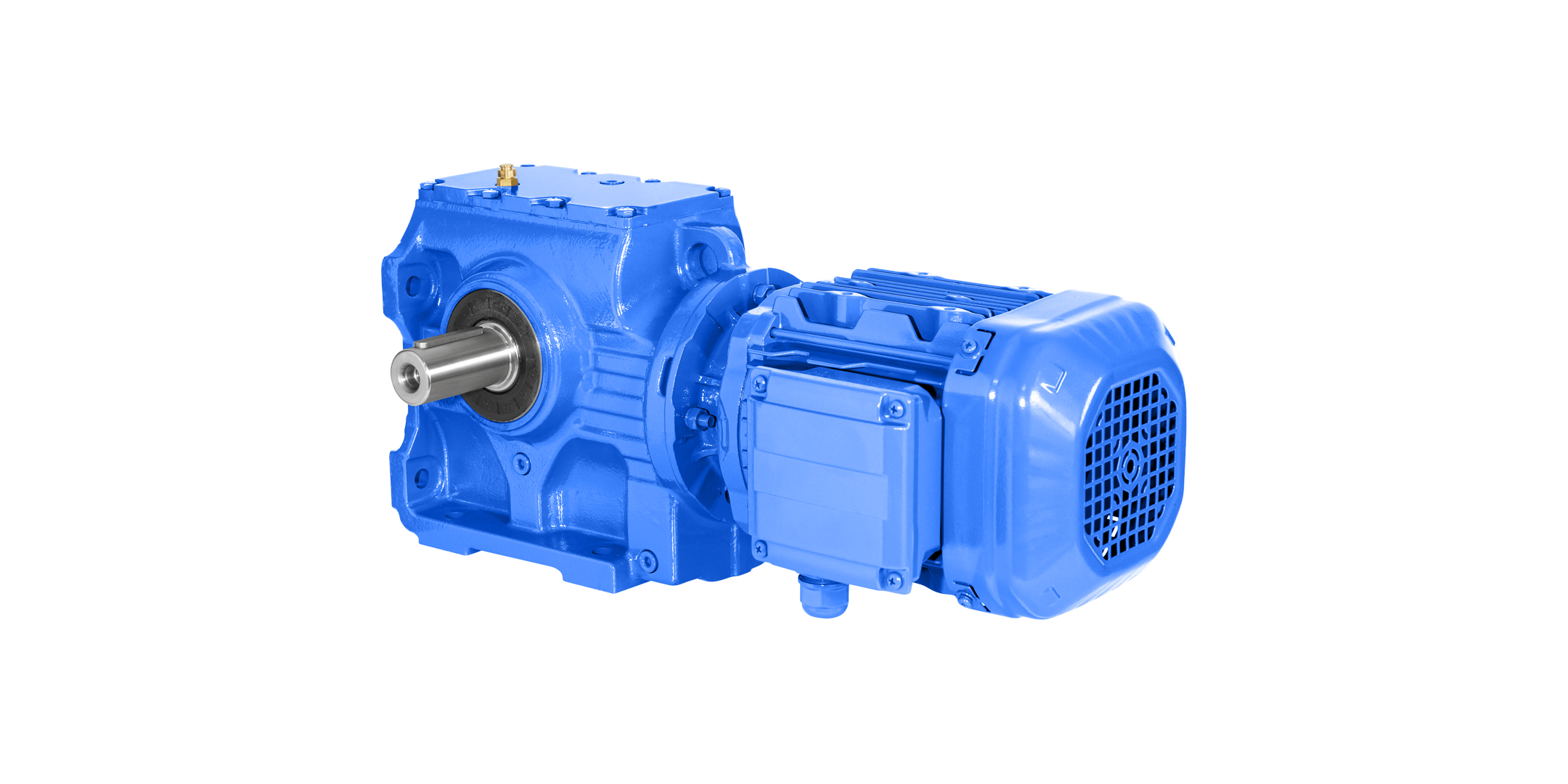

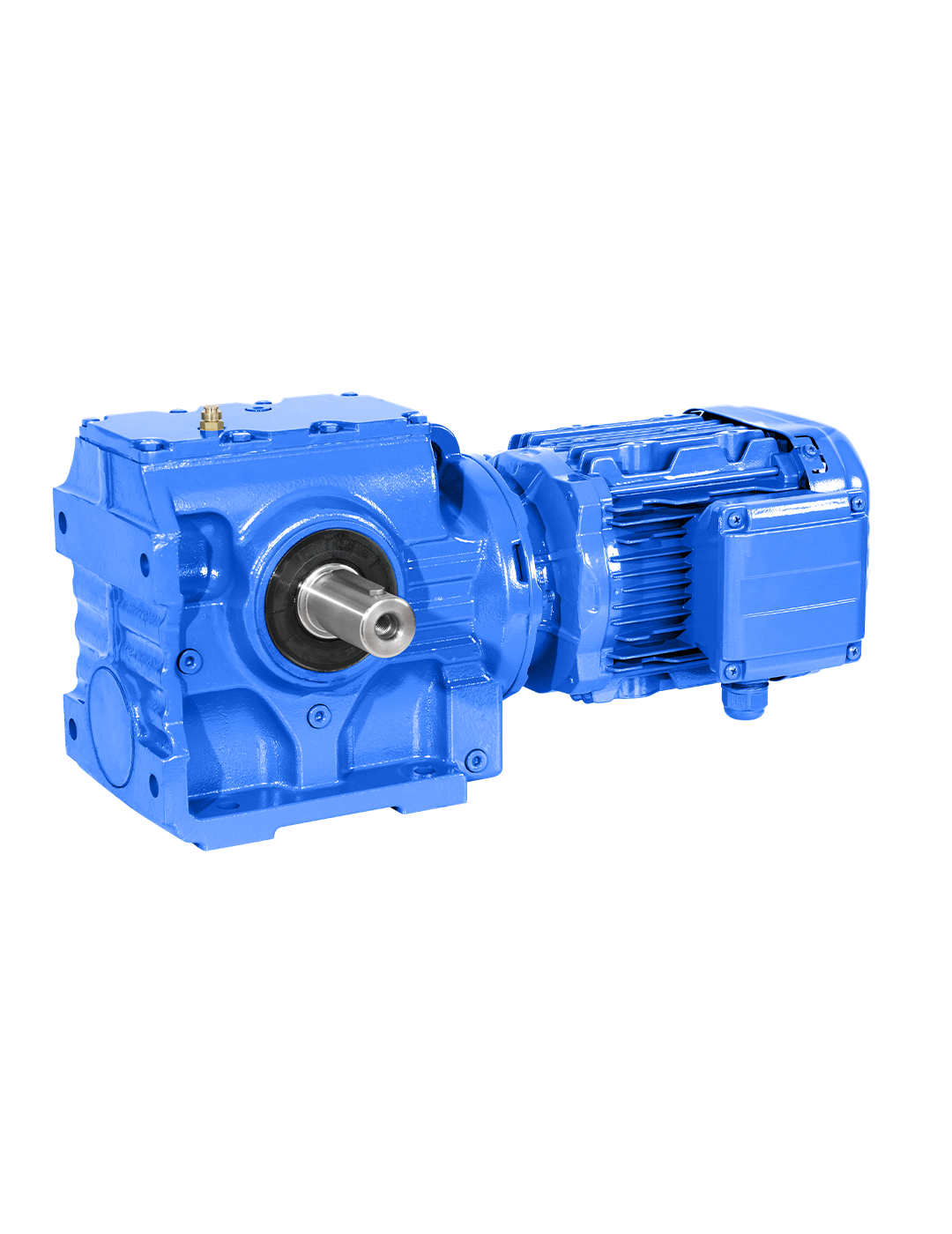

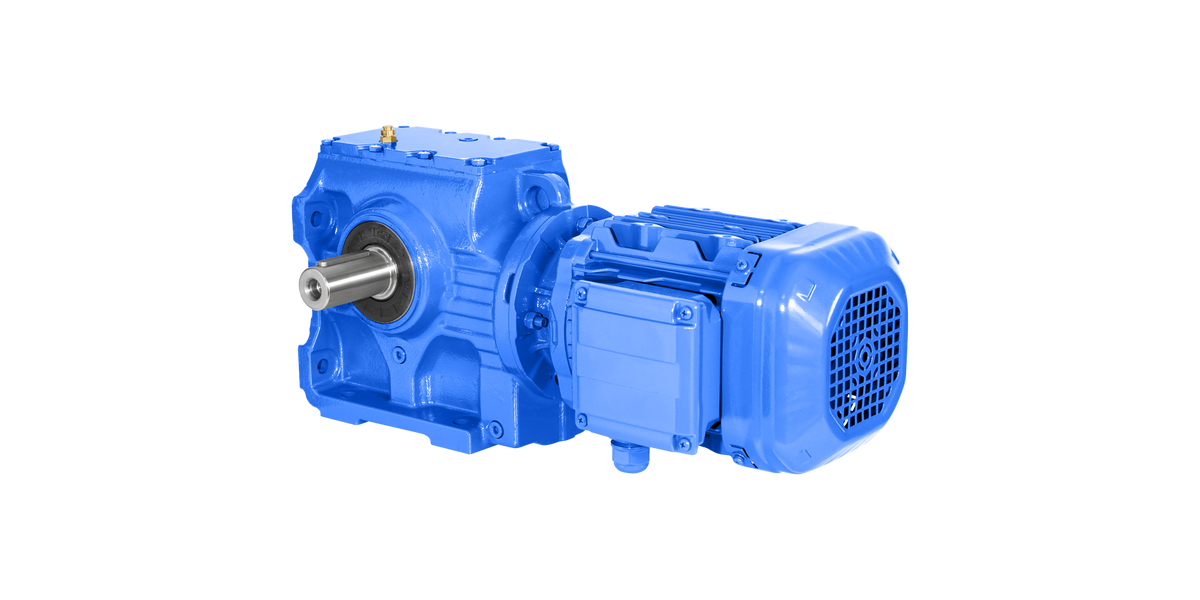

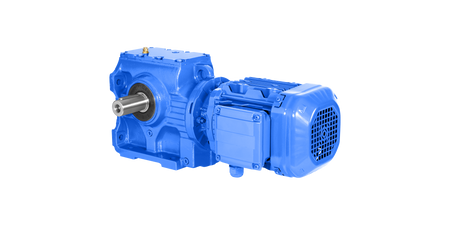

S Series Industrial Helical Worm Gearbox Helical Gear Reduce
Need product advice? Ask an expert
Got questions?
Feel free to get in touch
Technical Specifications
The S Series gear motor ingeniously combines the high efficiency of helical gears with the large gear ratios and right-angle output of worm gears. This design not only saves space but also ensures smooth, low-noise operation, making it a cost-effective choice for numerous applications requiring high reduction ratios and 90-degree power transmission.
Quick Overview: High reduction ratios, 90° output, smooth and quiet operation, and reliable self-locking under specific conditions.
Key Features
- High Reduction Ratio: Two-stage transmission combining helical and worm gears easily achieves very large gear ratios.
- Right-Angle Output: 90-degree output shaft is ideal for space-constrained installations and cleaner machine layouts.
- Smooth & Low-Noise Operation: Worm gear characteristics help ensure low vibration and low noise in sensitive environments.
- Cost-Effective: High reduction performance with strong cost-performance balance for practical, economical solutions.
- Self-Locking Capability: Under specific ratios and operating conditions, helps prevent back-driving and enhances safety.
Design and Mounting Options
The S Series is available in multiple design versions to meet various installation needs:
- S..D..: Foot-mounted with solid shaft.
- SA..D..: Hollow shaft mounted.
- SF..D..: B5 flange-mounted with solid shaft.
- SAF..D..: B5 flange-mounted with hollow shaft.
- SH..D..: Hollow shaft with shrink disk.
- SAZ..D..: B14 flange-mounted with hollow shaft.
Technical Specifications at a Glance
| Specification | S / SA / SF / SAF / SAZ Series |
|---|---|
| Input Power (kW) | 0.18 – 22 |
| Ratio (i) | 10.27 – 230.18 |
| Permissible Torque (N·m) | Up to 4,000 |
Model Designation Explained
Our model codes provide a clear overview of the product’s configuration. Here is an example breakdown:
| Code | Meaning |
|---|---|
| S | Product Series (S Series) |
| A | Mounting Type (Hollow shaft) |
| 67 | Gear Unit Size |
| T | With Torque Arm |
| D | Motor Type |
| 80N | Motor Frame Size / Stator Length |
| 4 | Number of Motor Poles |
| BMG | With Brake |
| 106.75 | Gear Ratio |
| d45 | Hollow Shaft Diameter |
| M1 | Mounting Position |
Operating Conditions
- Ambient Temperature: -40°C to +50°C (For startup below 0°C, the lubricant must be preheated).
- Altitude: Up to 1000 meters above sea level.
- Input Speed: Maximum of 1800 rpm.
- Operation: Suitable for both forward and reverse operation.
Typical Applications
Highly suitable for industries and equipment requiring right-angle transmission and high reduction ratios:
- Light-duty conveyor systems
- Agitators and mixers
- Food processing and packaging machinery
- Small hoisting devices
- Automated production lines
- And many more…
Engineering Data and Selection Verification
Use the information on this S Series Industrial Helical Worm Gearbox Helical Gear Reduce page for preliminary comparison. Final dimensions, materials, interfaces and operating limits must be confirmed against the current manufacturer catalog or an approved project drawing before purchase, fabrication or installation.
Table scope: each parameter row applies only to the model or size identified in that row. Do not interpolate, combine or transfer values between sizes without manufacturer confirmation.
Required Project Inputs
- Input speed and motor information
- Required output speed or target ratio
- Driven load type, start-stop pattern and operating schedule
- Mounting position, shaft direction and available installation space
- Site environment and maintenance-access requirements
Interfaces to Confirm
- Model size and mounting-hole pattern
- Input and output shaft or bore dimensions
- Flange, keyway, coupling and guarding arrangement
- Shaft center position and surrounding clearance
- Lubrication and inspection access
Reproducible Speed and Ratio Check
Required ratio: input speed ÷ target output speed. Expected output speed: input speed ÷ selected ratio. Record the source of each input value and use consistent units.
This arithmetic check does not confirm torque, power, service factor, temperature, efficiency or life. Ask ZPGear to verify those items from the current manufacturer data for the selected model and operating condition.
Source record: keep the manufacturer name, catalog or drawing number, revision date, selected model size, project inputs and final approval sheet with the order documentation. Send the project information to ZPGear for confirmation.
