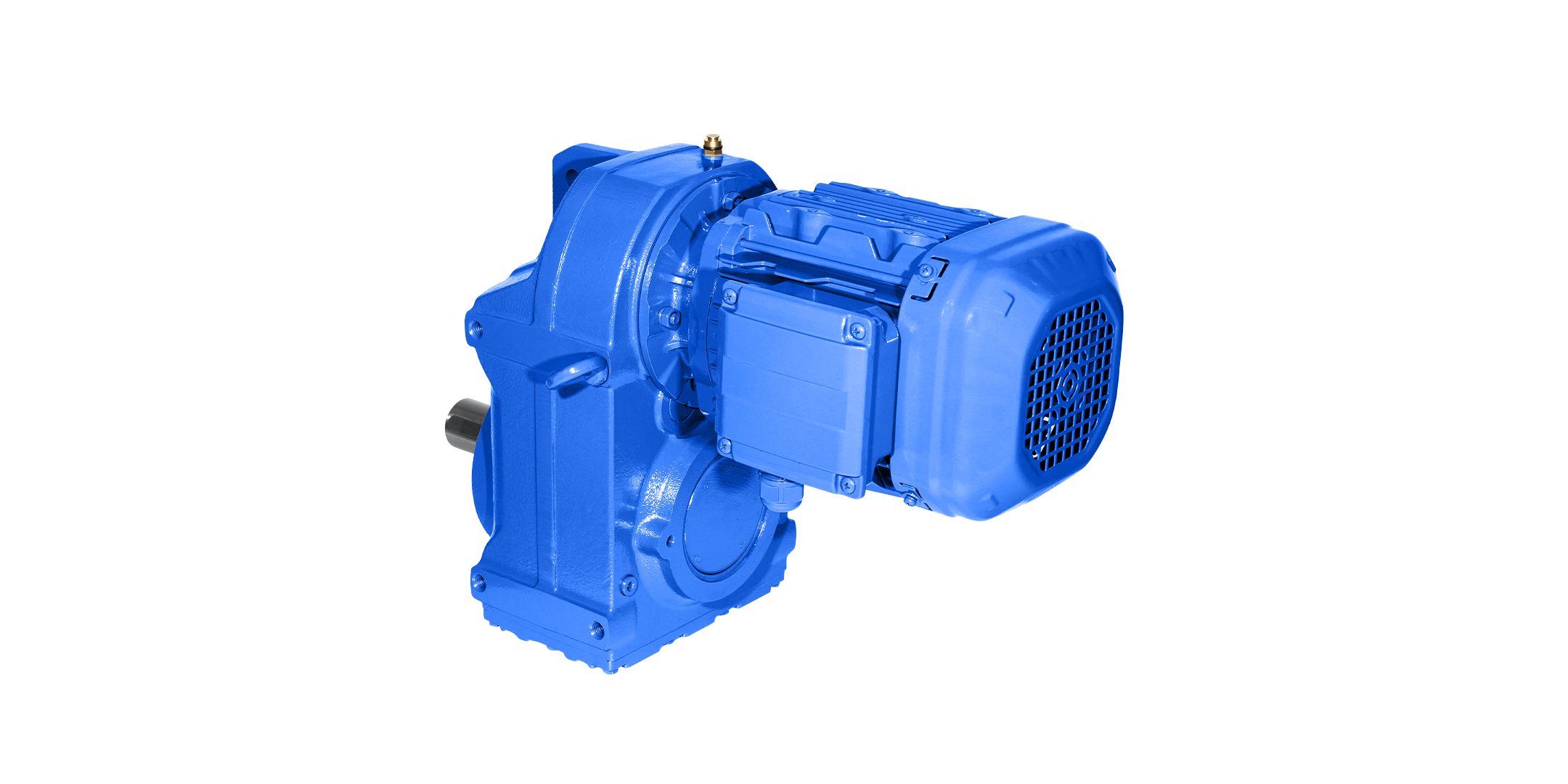

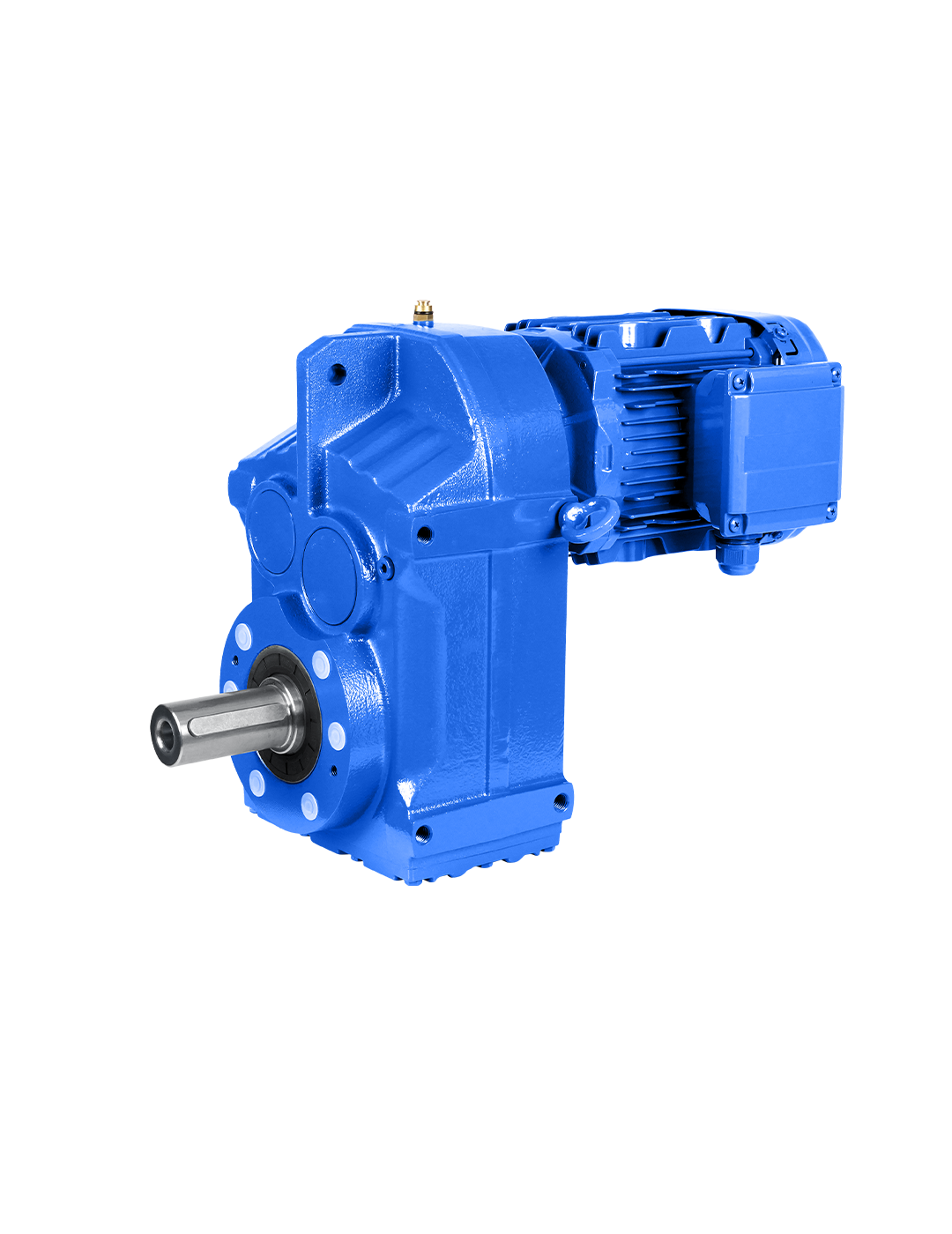

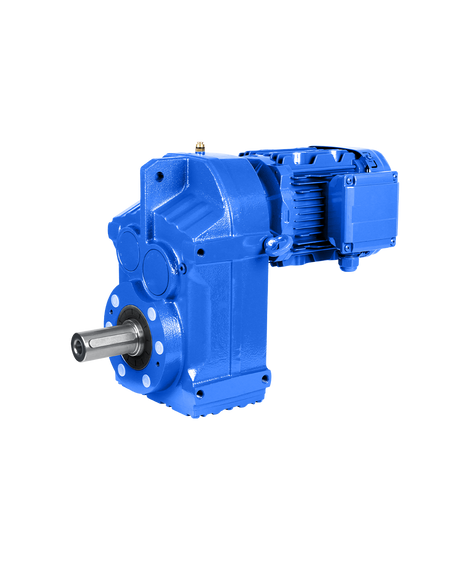

F Series Parallel Shaft Helical Gearbox with Motor
Need product advice? Ask an expert
Got questions?
Feel free to get in touch
Technical Specifications
The F Series Parallel Shaft-Helical Gear Motor is an exceptionally slim and compact solution, perfect for applications where space is limited. Its parallel shaft design allows for a space-saving installation while delivering high torque and superior performance. This series is known for its high radial load capacity and versatile mounting options, making it a robust and adaptable choice for various industrial needs.
Quick Overview: Slim parallel-shaft design, high torque output, strong radial load capacity, and flexible mounting configurations.
Key Features
- Space-Saving Design: Parallel shaft configuration keeps the unit exceptionally slim for tight installation spaces.
- High Torque Output: Compact yet engineered to transmit high torque efficiently.
- High Radial Load Capacity: Robust construction withstands high radial forces.
- Versatile Shaft Options: Solid or hollow shaft (keyway, shrink disk, or splined hollow shaft options).
- Flexible Mounting: Foot-mounted, flange-mounted, or shaft-mounted for maximum design flexibility.
Design and Mounting Options
The F Series offers a comprehensive range of mounting versions:
- F..: Foot-mounted with solid shaft.
- FA..: Hollow shaft mounted.
- FF..: B5 flange-mounted with solid shaft.
- FAF..: B5 flange-mounted with hollow shaft.
- FH..: Hollow shaft with shrink disk.
- FV..: Hollow shaft with splines.
- FAZ..: B14 flange-mounted with hollow shaft.
Technical Specifications at a Glance
| Specification | F Series |
|---|---|
| Input Power (kW) | 0.18 – 200 |
| Ratio (i) | 3.81 – 281.71 |
| Permissible Torque (N·m) | Up to 18,000 |
Model Designation Explained
Our model codes provide a clear overview of the product’s configuration. Here is an example breakdown:
| Code | Meaning |
|---|---|
| F | Product Series (F Series) |
| A | Mounting Type (Hollow shaft) |
| 67 | Gear Unit Size |
| G | With Torque Arm |
| D | Motor Type |
| 80N | Motor Frame Size / Stator Length |
| 4 | Number of Motor Poles |
| BMG | With Brake |
| 109.04 | Gear Ratio |
| M1 | Mounting Position |
Operating Conditions
- Ambient Temperature: -40°C to +50°C (For startup below 0°C, the lubricant must be preheated).
- Altitude: Up to 1000 meters above sea level.
- Input Speed: Maximum of 1800 rpm.
- Operation: Suitable for both forward and reverse operation.
Typical Applications
The F Series’ compact parallel-shaft design makes it a preferred choice for:
- Agitators and mixing equipment
- Conveyor belts and material handling
- Packaging machines
- Extruders
- Wastewater treatment equipment (e.g., aerators)
- And many more…
F Series Selection Guide
The F Series parallel-shaft helical gearbox is intended for installations that require high torque in a slim layout. Solid-shaft, hollow-shaft, flange-mounted, foot-mounted, shaft-mounted, shrink-disc, and splined configurations allow the drive to be matched to different machine layouts.
Which configuration should be selected?
Choose the mounting version by checking the driven-shaft connection, available installation space, radial load, torque requirement, mounting position, and maintenance access.
What data is required to size an F Series gearbox?
Provide motor power and speed, required output speed or ratio, operating hours, load characteristics, installation position, shaft connection, and ambient conditions.
Can a motor, brake, or torque arm be included?
Available configurations depend on the selected size and application. Include the required motor standard, brake, torque arm, and mounting details in the inquiry for confirmation.
Explore related helical gearboxes or contact ZPGear for model selection and quotation support.
