Accessory Components

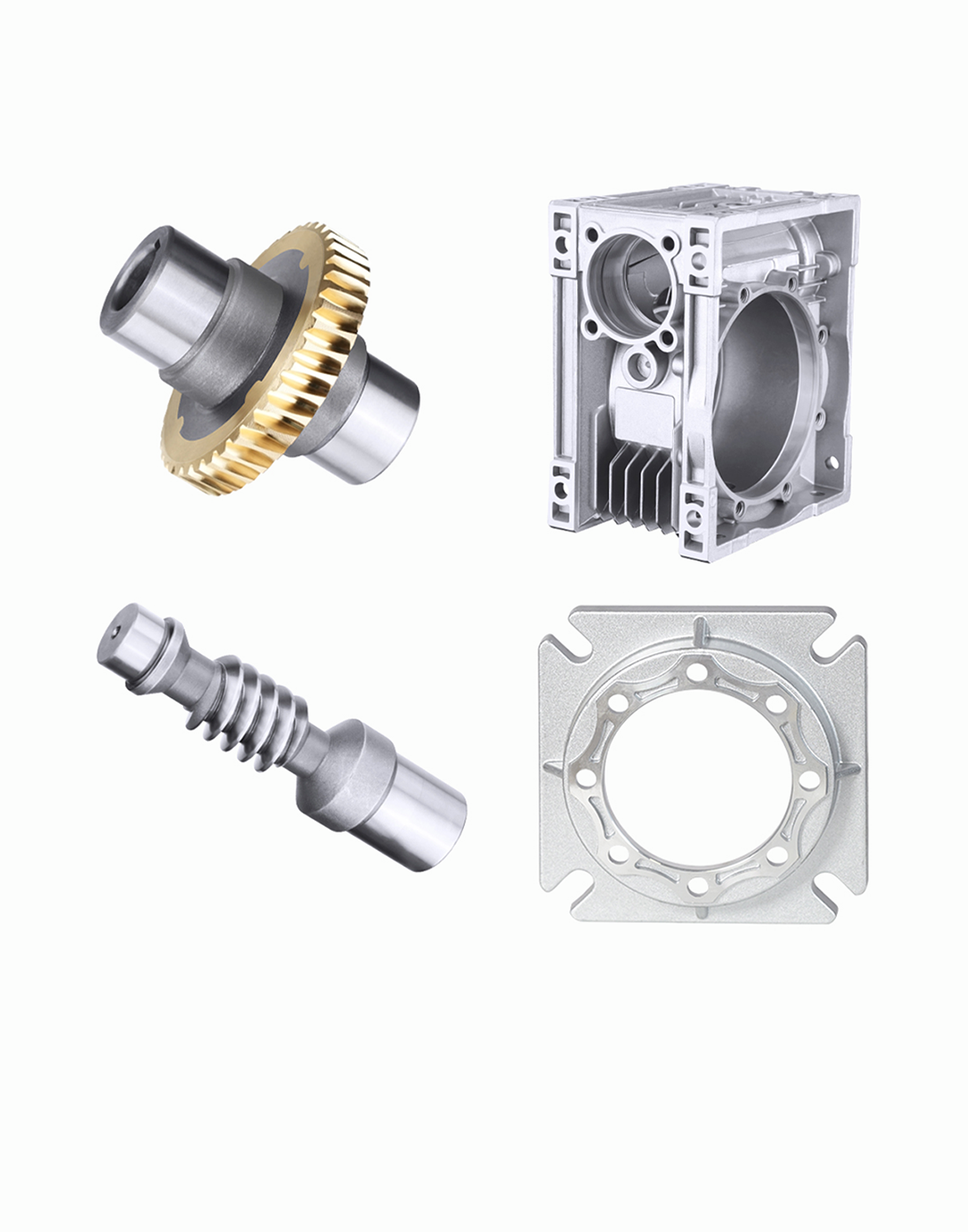

Our Accessory Components include high-quality parts such as Housing, Flange, Cover, Worm Wheel, and Worm Shaft. These components are designed to work seamlessly with our gear systems, providing reliability and precision. Each part is crafted with the utmost care to ensure durability and performance in demanding industrial applications.
- Housing: Sturdy and designed for durability, the housing ensures the protection of internal components.
- Flange: Precision-engineered to fit perfectly and provide secure attachment for your equipment.
- Cover: Acts as a protective barrier, ensuring the longevity of the internal parts.
- Worm Wheel: High-quality and built for smooth operation, ensuring efficient power transmission.
- Worm Shaft: Manufactured to exact standards for optimal performance.
All components can be sold separately, allowing you to choose only the parts you need. Simply provide the model number and specify the parts required, and we’ll ensure you get the right components for your system. Whether you need individual parts or full sets, we are here to meet your specific requirements.
Engineering Data and Selection Verification
Use the information on this Housing, Flange, Cover, Worm Wheel, Worm Shaft page for preliminary comparison. Final dimensions, materials, interfaces and operating limits must be confirmed against the current manufacturer catalog or an approved project drawing before purchase, fabrication or installation.
Data-sheet check: request the current model table and dimensional drawing before completing a selection because this page does not contain a complete tabulated specification.
Required Project Inputs
- Input speed and motor information
- Required output speed or target ratio
- Driven load type, start-stop pattern and operating schedule
- Mounting position, shaft direction and available installation space
- Site environment and maintenance-access requirements
Interfaces to Confirm
- Model size and mounting-hole pattern
- Input and output shaft or bore dimensions
- Flange, keyway, coupling and guarding arrangement
- Shaft center position and surrounding clearance
- Lubrication and inspection access
Reproducible Speed and Ratio Check
Required ratio: input speed ÷ target output speed. Expected output speed: input speed ÷ selected ratio. Record the source of each input value and use consistent units.
This arithmetic check does not confirm torque, power, service factor, temperature, efficiency or life. Ask ZPGear to verify those items from the current manufacturer data for the selected model and operating condition.
Source record: keep the manufacturer name, catalog or drawing number, revision date, selected model size, project inputs and final approval sheet with the order documentation. Send the project information to ZPGear for confirmation.
